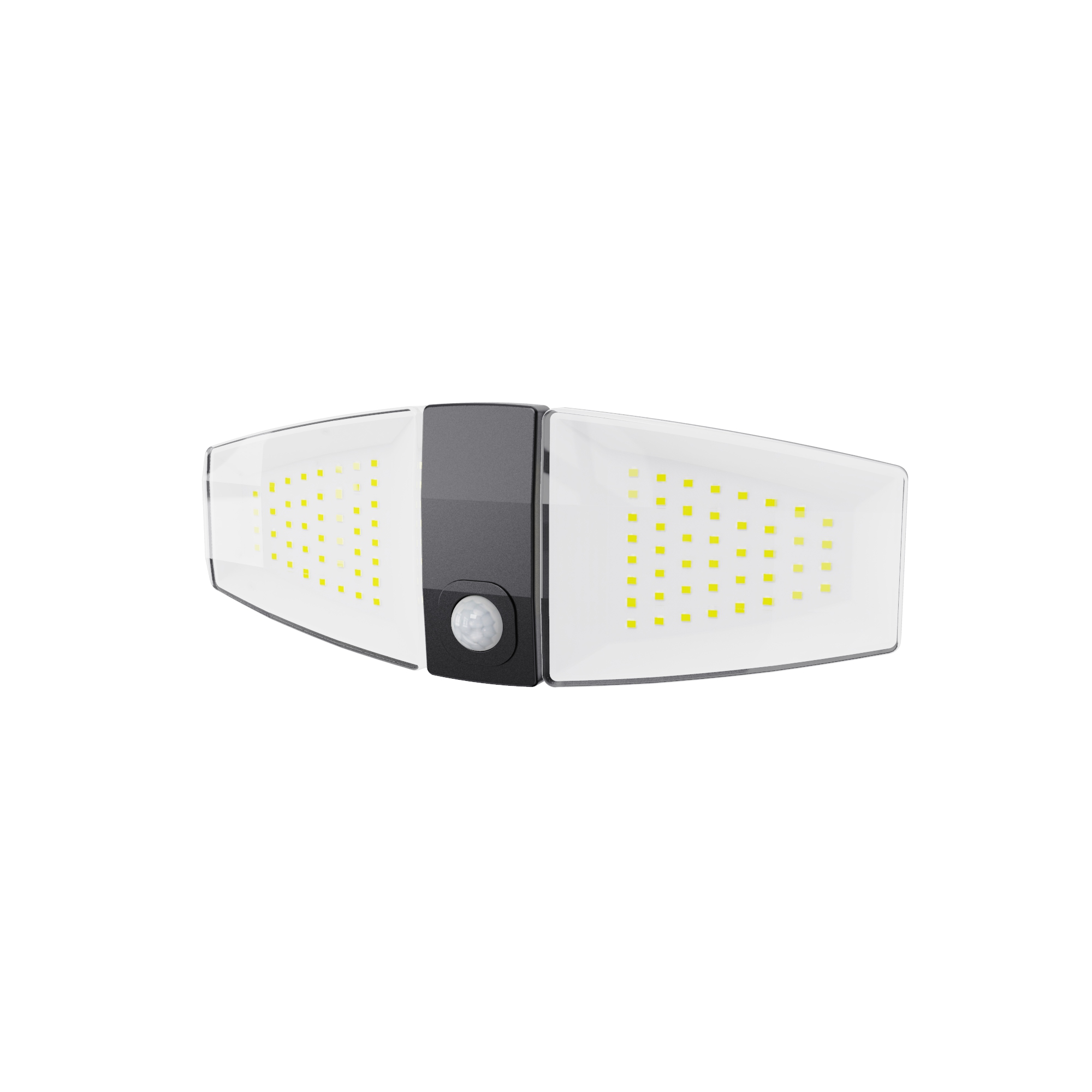

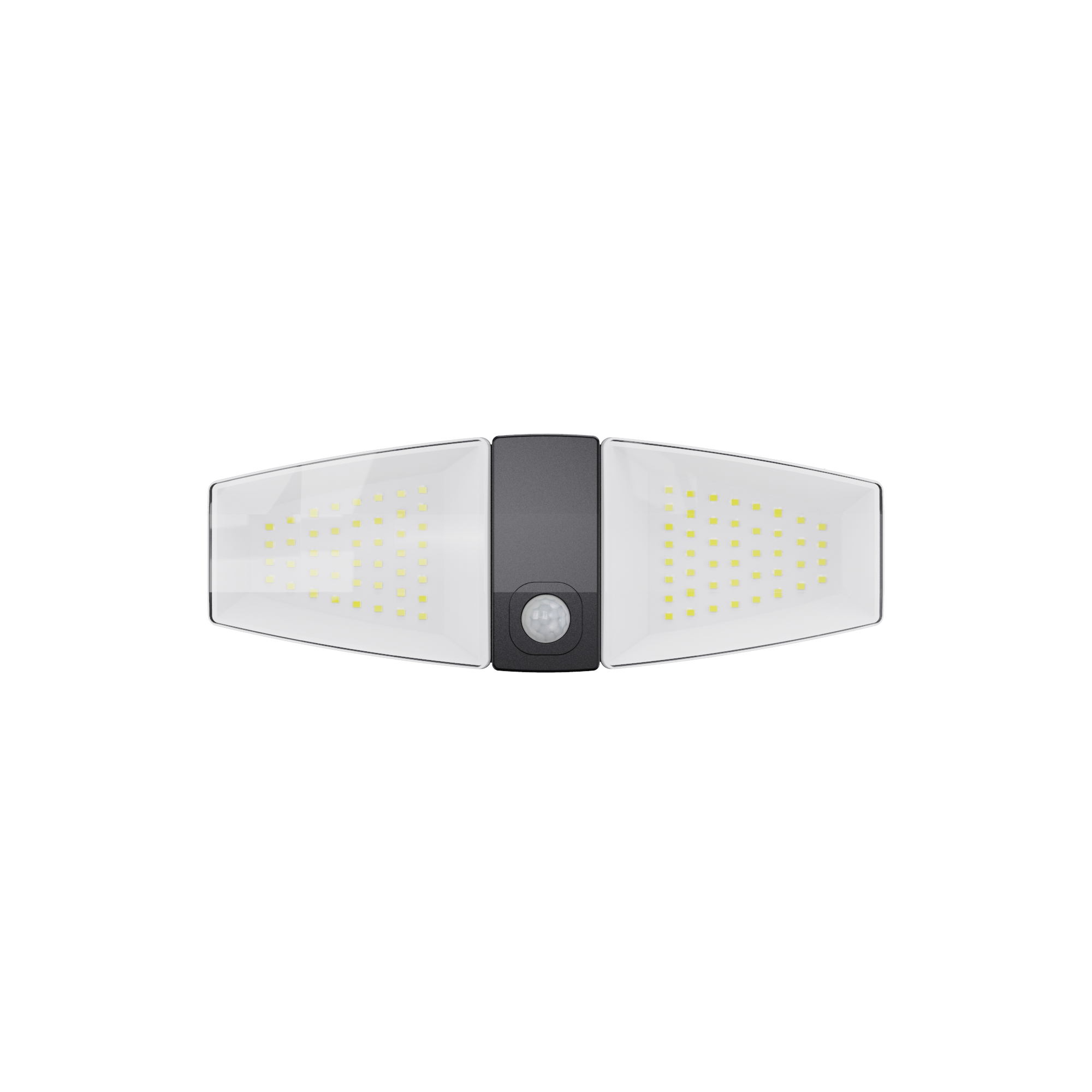

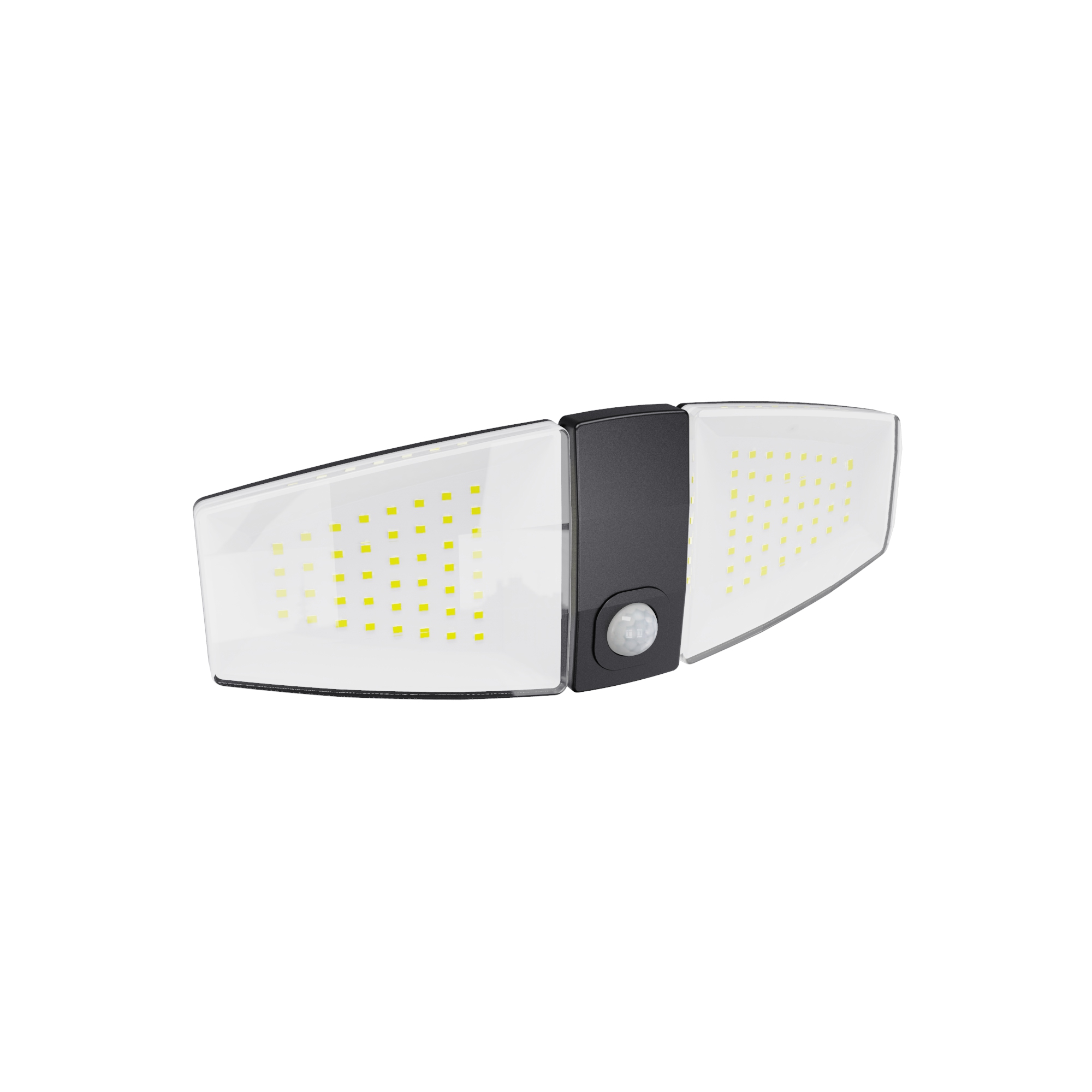

1200 Lumens Dual Head SolarMotion Sensor Security Light
Size of Light:31.4*11*11.6cm
Size of Solar Panel:14.1*16.3*6.2cm
Solar Panel:Amorphous silicon
Light Source:White SMD LED
LED Color Temperature: 6000~6500K
Lumen Output:Maximum 1200 lumens
Battery:Lithium rechargeable battery
Switch:Push-button ON-OFF switch
Main Material:Plastic body
Detection Range:Maximum detecting angle 120°
Detection Distance:Maximum 10 meters
Time Delay:30s
How to Install and Use Your 1200 Lumens Dual Head Solar Motion Sensor Security Light: A Step-by-Step Guide
Enhance your home’s security and illuminate outdoor spaces with our powerful 1200 Lumens Dual Head Solar Motion Sensor Security Light. This easy-to-install, weather-resistant light provides bright, automated lighting while saving energy. Follow this simple guide to set up and optimize your new solar security light.
---
What’s Included:
- 1× Dual Head Solar Motion Sensor Light
- 1× Mounting Bracket
- 2× Screws and Wall Plugs
- 1× User Manual
---
Step 1: Choose the Right Location
Select a location that:
- Receives maximum sunlight during the day (at least 6–8 hours of direct sun).
- Is positioned 2–3 meters (6–10 feet) above the ground for optimal motion detection.
- Faces the area you want to secure (driveway, garden, garage, porch, etc.).
- Has no obstructions (e.g., trees, walls) blocking the solar panel or motion sensor.
---
Step 2: Install the Light
1. Attach the mounting bracket to your wall or post using the included screws and wall plugs.
2. Secure the light unit onto the bracket until it clicks into place.
3. Adjust the two LED heads to your desired angle to cover a wider area.
---
Step 3: Charge the Battery Fully Before Use
- Before first use, charge the light for 8–10 hours in direct sunlight.
- Use the push-button ON/OFF switch to turn the light OFF while charging to preserve battery.
---
Step 4: Test the Motion Sensor
- Once charged, turn the light ON using the switch.
- The light will automatically activate at dusk.
- Test the motion sensor by walking within 10 meters (33 feet) of the light. It should turn on within seconds and stay on for 30 seconds after motion stops.
---
Step 5: Adjust Settings for Optimal Performance
- Dual Head Angle: Customize the direction of both light heads for broader coverage.
- Sensor Sensitivity: The built-in PIR motion sensor has a 120° detection angle and 10-meter range—make sure it’s aimed toward movement pathways.
- Time Delay: The light stays on for 30 seconds after motion is detected. This cannot be adjusted in this model.
---
Tips for Best Results:
- Clean the solar panel every few weeks with a soft cloth to maintain charging efficiency.
- Avoid placing the light near other light sources to prevent false triggers.
- In winter or cloudy weather, allow extra charging time due to reduced sunlight.
---
Troubleshooting FAQ
Q: Why won’t the light turn on?
A: Check if the switch is ON. Ensure the battery is fully charged. Test at night—the light only works in darkness unless triggered by motion.
Q: Why does the light not stay on long?
A: Limited sunlight may reduce battery capacity. Give it a full sun charge.
Q: Can I use it in extreme weather?
A: Yes! The plastic body is weather-resistant, but avoid submerging in water.
Q: The motion sensor isn’t detecting movement.
A: Check for obstructions. Adjust the angle of the light and sensor. Avoid mounting near heat sources.
---
Technical Specifications
- Light Size: 31.4×11×11.6cm
- Solar Panel: Amorphous Silicon (14.1×16.3×6.2cm)
- Brightness: 1200 Lumens
- LED Color: White (6000–6500K)
- Battery: Lithium Rechargeable
- Detection Angle: 120°
- Detection Distance: 10 meters
- Delay Time: 30 seconds
- Material: Plastic Body
---
Need More Help?
Refer to the included user manual or contact our customer support team. We’re happy to assist!
Light up your nights safely and efficiently with zero electricity cost!
